중•고경도 엔드밀
페이지 정보
본문
| Product Name | G-MILL (중•고경도 엔드밀) (High Speed Middle-Ranged) |
|---|---|
| Type | 볼 엔드밀 (Ball Endmill), 평 엔드밀 (Flat Endmill), 코너R 엔드밀 (Corner Radius Endmill) |
| Model | GB 2000 / GBS 2000 / GE 2000 / GE 4000 / GEL 4000 / GE 2000R / GE 4000R / GEL 4000R / GELX 4000R |

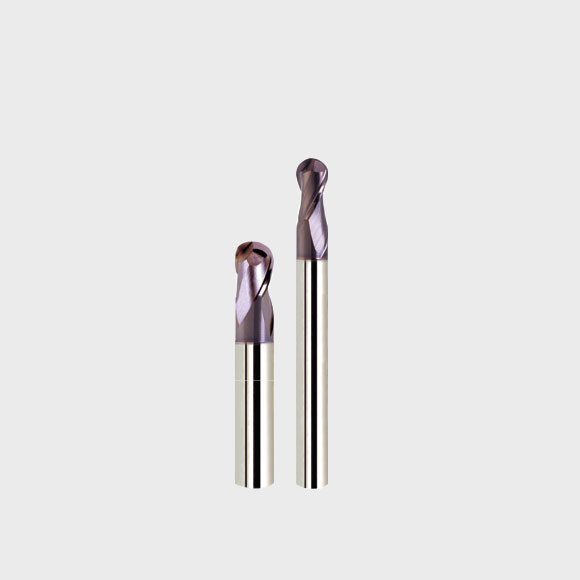

볼 엔드밀(Ball Endmill)
| Appearance | Model No. | Flutes | Size | |
|---|---|---|---|---|
| Min | Max | |||
 |
GB 2000 | 2F | R 0.1 | R 6.0 |
 |
GBS 2000 | 2F | R 0.5 | R 6.0 |

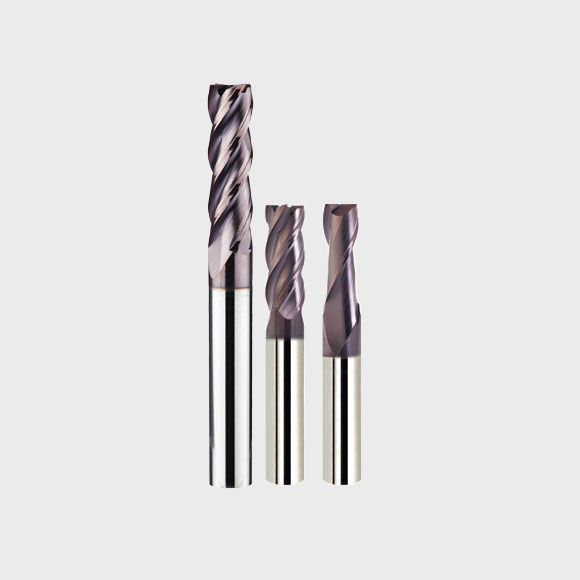

평 엔드밀(Flat Endmill)
| Appearance | Model No. | Flutes | Size | |
|---|---|---|---|---|
| Min | Max | |||
 |
GE 2000 | 2F | D 0.2 | D 12.0 |
 |
GE 4000 | 4F | D 1.0 | D 16.0 |
 |
GEL 4000 | 4F | D 2.0 | D 16.0 |

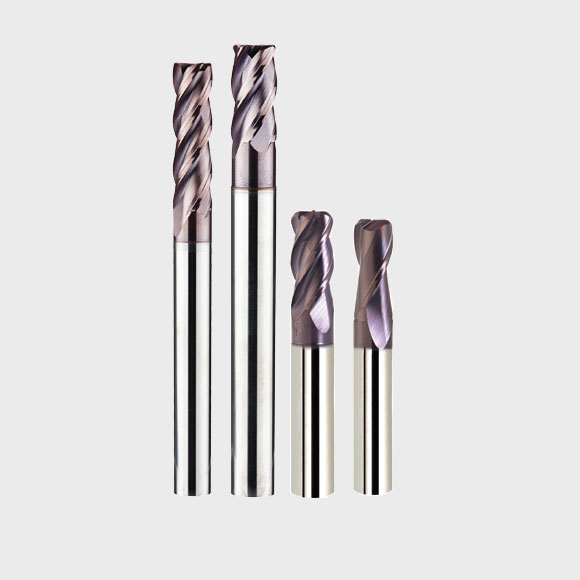

코너R 엔드밀(Corner Radius Endmill)
| Appearance | Model No. | Flutes | Size | |
|---|---|---|---|---|
| Min | Max | |||
 |
GE 2000R | 2F | R 0.1 | R 2.0 |
 |
GE 4000R | 4F | R 0.2 | R 3.0 |
 |
GEL 4000R | 4F | R 0.3 | R 2.0 |
 |
GELX 4000R | 4F | R 0.5 | R 2.0 |
